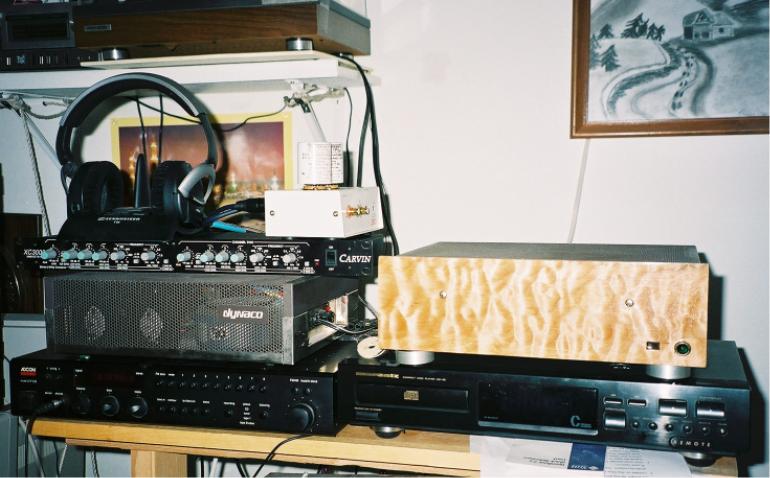

This is a picture of my old system; Van Alstein modified ST-120, Dyna ST-35 conversion (with quilted maple front panel) from an SCA-35, Adcom tuner/preamp, Carver 24db/octave cross-over, and an AH tube CD player.

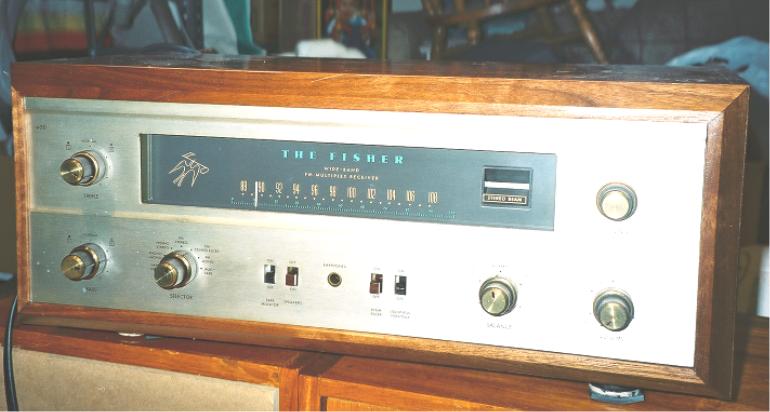

This is my Fisher 400 tube receiver that was modified to use EL-34 tubes
and totally updated (all diodes and many caps replaced). An excellent
system with a hand-made African Mahogany case.

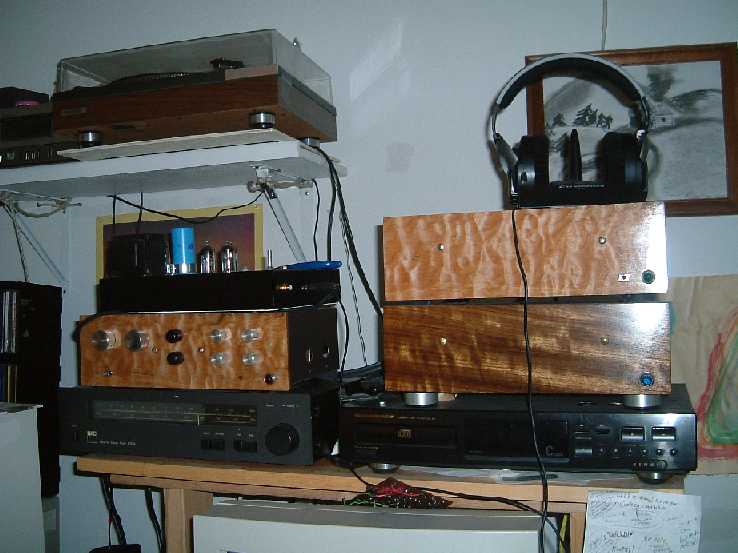

This is the latest picture of my system (06/25/03). Top left is
the headphone amp that I built. Middle left is the totally redesigned
Dynaco PAS-3X (with two stepped attenuators, grayhill switches, and my own
circuit redesigns). Bottom left is a NAD tuner. Right (top and middle)
Dynaco ST-35 circuit (with circuit tweaks) amps made from SCA-35s. Bottom
right is an AH! tube CD player (based on a Marantz shell).

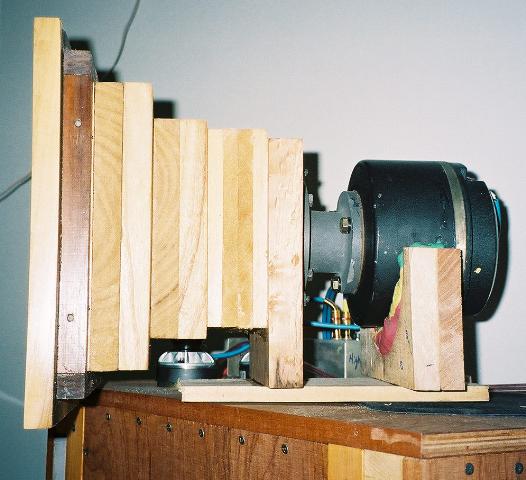

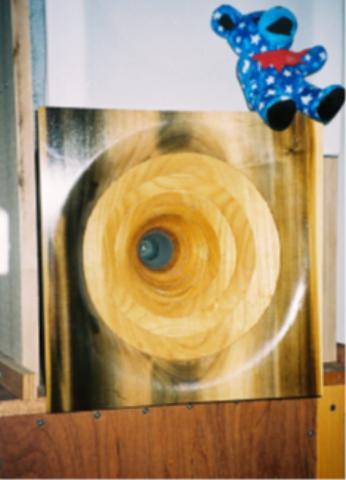

These are excellent sounding horns! They are 350 Hz Tractrix horns that I hand-made from laminated Alder, Basswood, Paulownia, and mineral stained (naturally) Poplar. I finished these up Sept. 11th - I couldn't emotionally watch the news anymore, so I went out to the garage and finished them up - and then I could watch the F-15s doing Combat Air Patrols over the DC area. The drivers are Altec 292s with an JBL 2330 spacer.

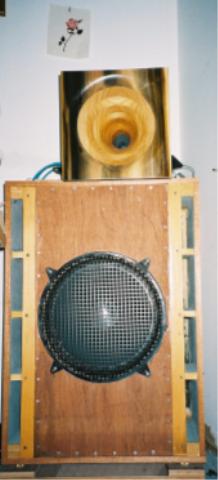

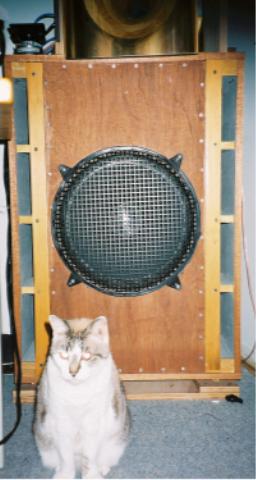

Here's a couple shots of my speakers - one with my Japanese cat, Miki. The Bass speakers are a Jensen Ultraflex design that I built with a slightly reduced (90 square inches vs. 120 square inches) port area to give the boxes a slightly higher resonant frequency than the JBL 2205's 30 Hz.
