D. Tietz and A. Chrambach, Electrophoresis 1992, 13, 286-294

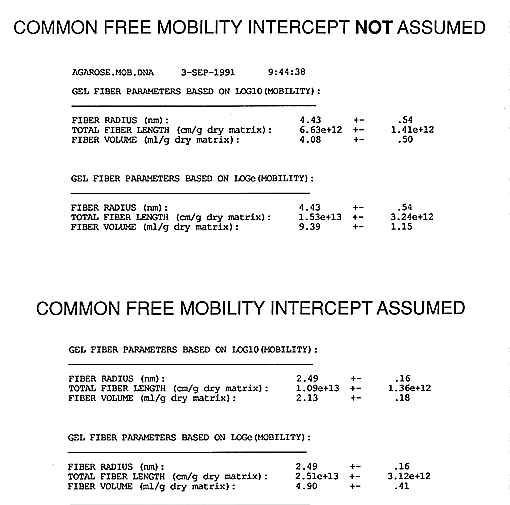

Fig.3: Some agarose fiber properties derived from the concave Ferguson plots of DNA fragments (Fig.1) by program ElphoFit version 2.0. Two cases are evaluated assuming no common free mobility or assuming a common free mobility the fitted value of which is 39.9 +- 0.2 cm^2 $V^-1 s^-1. Fiber parameters for the purpose of that calculation are assumed not to vary with gel concentration.
